Flange DIN3202 Industrial Check Valves With Lever Counterweight

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : DN100-DN500

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 10 pcs

Price : USD300.00-USD2500.00/PC

Payment Terms : T/T, L/C, D/P, D/A

Supply Ability : 1000 PCS/MONTH

Delivery Time : 30 Days

Packaging Details : Plywood cases

Product name : Tilting Check Valve

Nominal diameter : DN100-DN500

Working pressure : 1.0Mpa, 1.6M

Flange standard : DIN3202-F4

Face to face : DIN2501

Structure : Check

Application : General

Contact Now

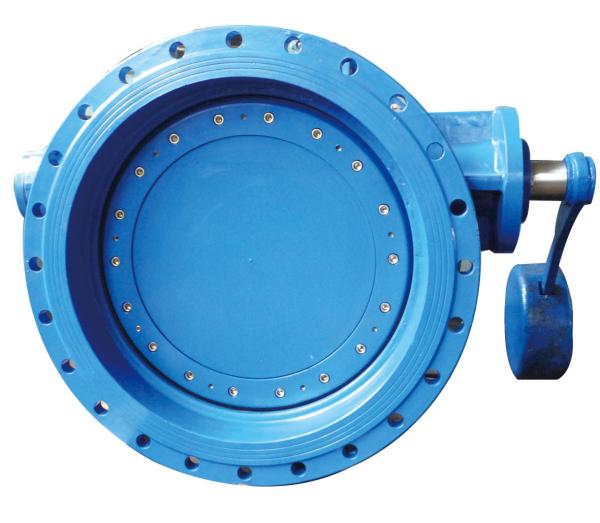

Flanged Tilting Check Valve with Lever and Counterweight

1. Description

Flanged End: DIN3202-F4

Face-to Face dimension: DIN2501

Working pressure: 1.0Mpa, 1.6Mpa

Body testing pressure: 1.5Mpa, 2.4Mpa

Sealing test pressure: 1.1Mpa, 1.76Mpa

2. Material:

NO. Part Material
1 Body Ductile Iron
2 Seat Sealing Face Brass/stainless steel
3 Ring Fitted to Disc for Shaft Rubber
4 Shaft Stainless Steel
5 Shaft Bearings Stainless Steel with PTEF Ling
6 Lever Ductile Iron
7 Balance Weight Cast Iron

3. Dimension: PN16/PN10

SIZE L D C n-d
PN16 PN10
100 190 220 180 8-18
125 200 250 210 8-18
150 210 285 240 8-23
200 230 340 295 12-23 8-23
250 250 405/395 355/350 12-27 12-23
300 270 460/445 410/400 12-27 12-23
350 290 520/505 470/460 16-27 16-23
400 310 580/565 525/515 16-30 16-27
450 330 640/615 585/565 20-30 16-27
500 350 715/670 650/620 20-33 20-27

3. Company Profile

Anhui Sunval International Co., Ltd. is a professional supplier of valves and piping systems. Our company focuses on iron valves, steel valves, copper alloy valves, pipes and related accessories etc. Sunval offers design, purchase, production, quality control and export as well as after service for industrial valves. Sunval has been selling to Asia, Europe, America and Middle East.
Sunval has an experienced team of merchandisers familiar with industrial valves. We will always contribute to customer requirement to supply quality products with best service, and hope to maintain long term relationship with customers to make mutual benefit.
